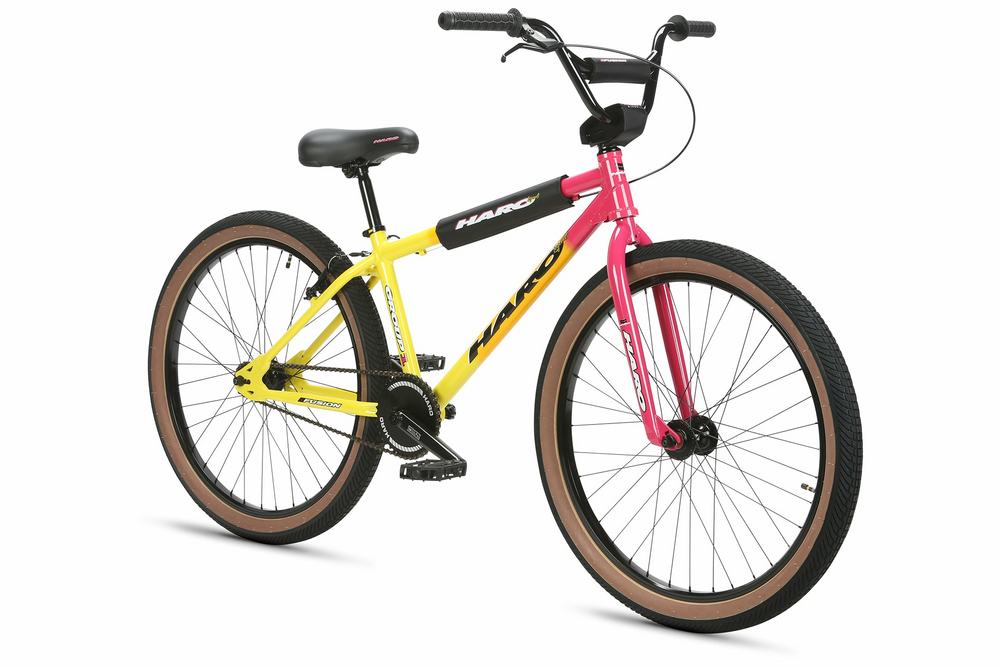

Haro Group 1 24
-471549-3380369-1.png "Haro Group 1 24")
-471549-3380369-1.png "Color: Pink/Orange/Yellow")
-471549-5.png)
-471549-1.png)
-471549-2.png)
-471549-3.png)
-471549-4.png)
$441.00
$629.99
Details
- 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, MID BB Shell & V-Brake Mounts
- 1 1/8" Threadless Full Cr-Mo Fork w/ Internally Threaded Steerer Tube & Tapered Legs
- Haro Baseline 3-pc Cr-Mo 8 Spline 175mm - 39t Steel Chainring
- Poly Platform, Cr-Mo 9/16" Axle
- Haro freestyler 7" rise bars
- 36 hole double wall rims
- Haro Group 1 seat
- Haro Group 1 Padset
- Haro Team Grips
| Size | A. Head Angle | B. Seat Angle | C. Top Tube | D. Seat Tube | E. Chainstay | F. BB Height | G. Stand Over |
|---|---|---|---|---|---|---|---|
| 24 | 73° | 70° | 22.5" (561mm) | 14.5" (340mm) | 16.9" (403mm) | 12.2" (305mm) | 27.5" (647mm) |
Specs
| Pedals | Poly Platform |
|---|---|
| Fork | 1 1/8" Threadless Full Cr-Mo Fork w/ Internally Threaded Steerer Tube & Tapered Legs |
| Hubs | F: 36h Alloy High Flange Sealed Bearing / R: 36h Alloy High Flange Sealed Bearing |
| Stem | Haro Baseline 48mm Reach |
| Chain | Haro Baseline chain |
| Frame | 6061-T6 Heat Treated Alloy Frame |
| Tires | Kenda "Kranium" 24 x 2.4" |
| Brakes | C STAR Alloy V-Brake |
| Saddle | Haro Adjustable Padded |
| Wheels | 24" Alloy 36h |
| Headset | Integrated 1-1/8" Threadless Sealed Bearing |
| Crankset | Haro Baseline 3-pc Cr-Mo 8 Spline 175mm |
| Seatpost | Alloy |
| Chainrings | 39t Steel Chainring |
| Handlebars | Full Cr-Mo Freestyler 7" Rise |
| Tape/Grips | Haro Team Grip |
| Brake Levers | C STAR 3 Finger Alloy Lever |
| Bottom Bracket | Sealed Bearing MID |
| Accessories & Extras | Haro Padset |
| Cassette/Freewheel | 17t Freewheel |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Pink/Orange/Yellow / 24-inch / 24-inch | 691840247900 | 24790 | 210000010459 |
